SOCA-01-T-4G50 Smart 4G

A Rotator That Reports On Its Own Connection.

The Smart controller carries a Telit LTE module and a SIM of its own, so it measures and reports from sites with no local network to borrow.

UK Recommended Retail

GBP 449.00Ex VAT, and a recommendation. Nothing in our agreement with Cellular Path fixes or restricts the price at which a reseller resells, and we do not monitor resale prices.

How It Works

Mount
The rotator clamps to a pole of 25 to 57 mm diameter with two V-bolts, and the supplied antenna pole carries the directional antenna above it.
Fit A SIM
One SIM slot in the controller. The access point name is set at commissioning and the data sits on the customer's own account.
Scan
Twelve positions through 360 degrees. Cellular Path's comparison sheet gives alignment of this model in under five minutes.
Re-Aim
From the app or the web portal, whenever the network moves. No second visit.

Specification

RotatorDie-cast aluminium and glass-filled polycarbonate

Rotator size131 mm wide, 99 mm deep. 590 mm overall with the antenna pole fitted

Rotator weight2.3 kg. 3.6 kg boxed

Antenna pole356 mm, supplied

MountingTwo V-bolts with flanged nuts, on a pole 25 to 57 mm in diameter

Maximum antenna weight36 kg

Wind97 km/h sustained, gusts to 145 km/h

Rotator environmentIPX2. Minus 29 to 60 C. Humidity to 100 per cent. UV to UL 746C (f1)

Rotator connectorFour-pin M12

Cable15 m power and control, supplied. Extensions of 15 m and 30 m

Power12 V DC from a 2 A supply, 24 W maximum. The rotator draws up to 1 A

ModuleTelit CMB100A0-WW

Band supportB1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28. That is the module's support as published by Cellular Path, not a statement about any UK network

AntennaSISO directional, on a single coax run

RF portsTwo SMA female, in and out. 50 ohm

SIMOne slot in the controller

ControllerPC/ABS. 152 x 81 x 33 mm, 0.23 kg. For indoor use

Controller radio2.4 GHz Wi-Fi, 802.11 b/g/n. Bluetooth for pairing

Cellular Path's two datasheets give the maximum antenna weight as 80 lb on one model and 100 lb on the other, for what is the same rotator. We publish the lower of the two until Cellular Path confirms one figure. The controller is an indoor unit and carries no ingress rating.

Not In The Box

The SIM, the directional antenna, the coax and the mounting pole.

The Unit

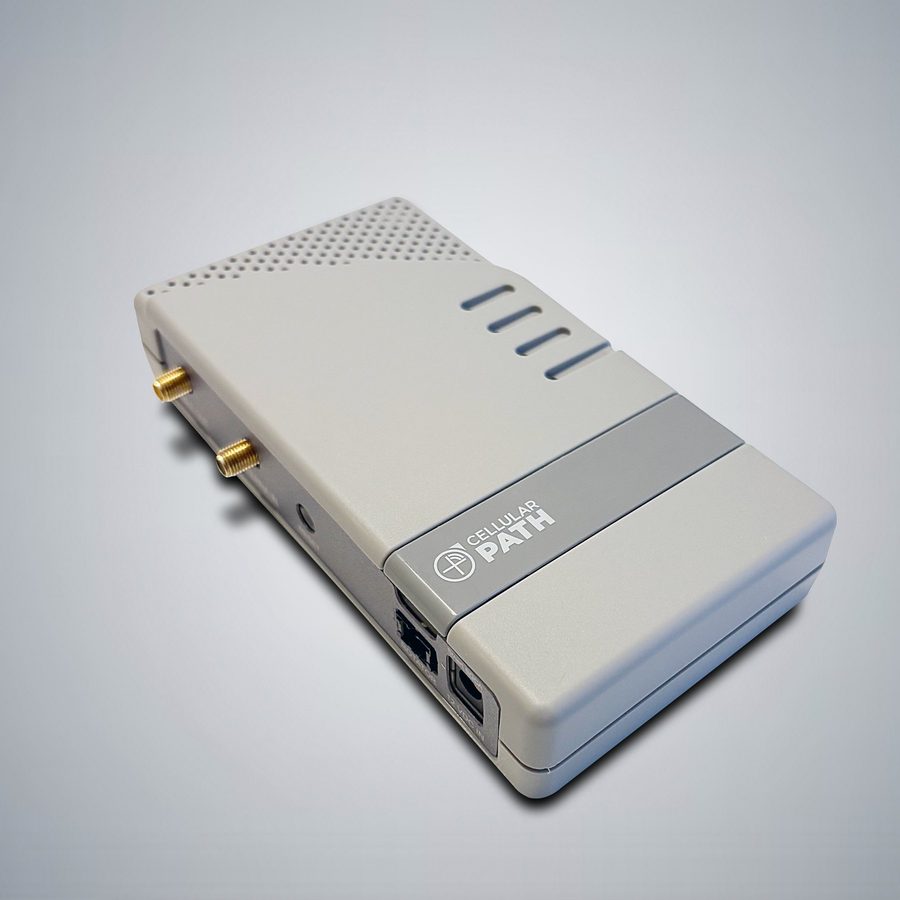

The indoor controller for the Smart 4G model at an angle, showing the two SMA antenna ports on its left edge. — The Smart 4G controller and its two SMA ports. Photograph: Cellular Path.

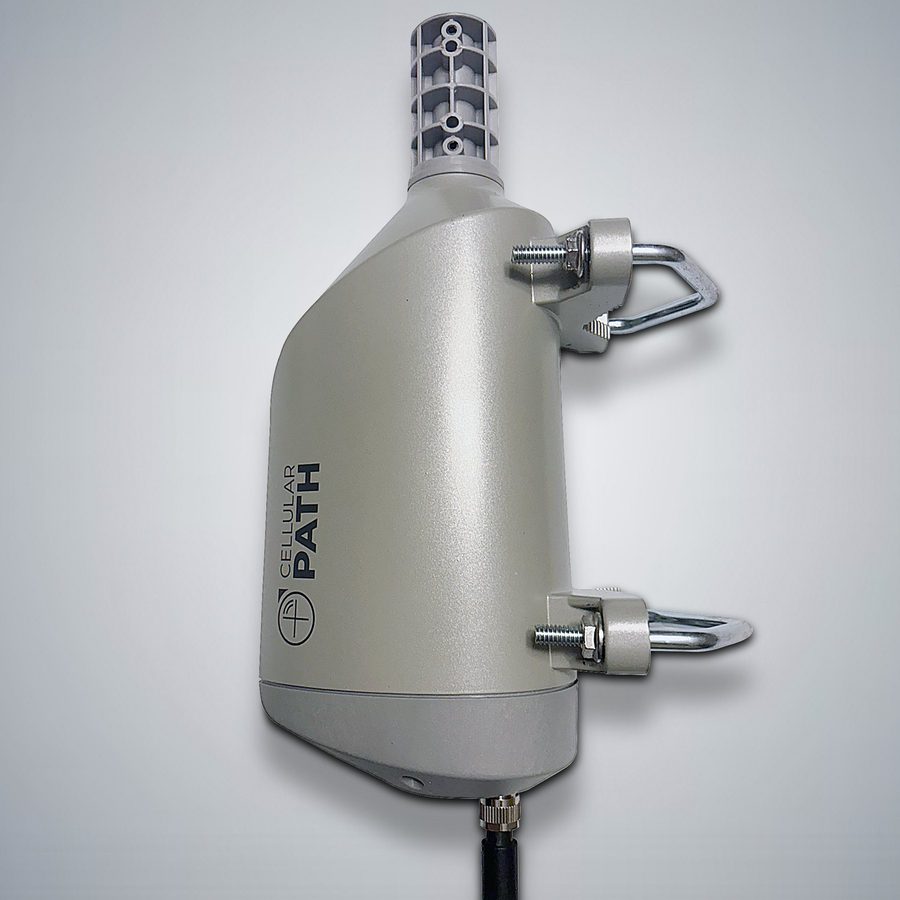

A SOCA rotator seen from the side, mounted on a pole. — The rotator, pole mounted. Photograph: Cellular Path.

The Other Model

Where the site already runs a cellular router, SOCA-02 No Modem uses it and costs less.

Read The No Modem Page

Manufacturer

Distributed in the UK by Boothroyd Distribution.

Specifications and photographs are Cellular Path's own, published by it and reproduced here under our distribution agreement. The photographs were taken at sites in the United States. Cellular Path and SOCA are trade marks of Cellular Path, Inc.
