SOCA-02 No Modem

No Second Modem. No Second SIM.

The controller joins the router's own 2.4 GHz network and reads that router's signal figures while the rotator scans. The modem on site stays the one you already chose.

UK Recommended Retail

GBP 339.00Ex VAT, and a recommendation. Nothing in our agreement with Cellular Path fixes or restricts the price at which a reseller resells, and we do not monitor resale prices.

How It Works

Mount
The rotator clamps to a pole of 25 to 57 mm diameter with two V-bolts, and the supplied antenna pole carries the directional antenna above it.
Pair
The controller couples to the router's 2.4 GHz network. The installer needs the router's wireless credentials and its administrator login, and Cellular Path's manual says to record both before going to site.
Scan
Twelve positions through 360 degrees. Cellular Path's comparison sheet gives alignment of this model in under ten minutes.
Re-Aim
From the app or the web portal, whenever the network moves. No second visit.

Specification

RotatorDie-cast aluminium and glass-filled polycarbonate

Rotator size131 mm wide, 99 mm deep. 590 mm overall with the antenna pole fitted

Rotator weight2.3 kg. 3.6 kg boxed

Antenna pole356 mm, supplied

MountingTwo V-bolts with flanged nuts, on a pole 25 to 57 mm in diameter

Maximum antenna weight36 kg

Wind97 km/h sustained, gusts to 145 km/h

Rotator environmentIPX2. Minus 29 to 60 C. Humidity to 100 per cent. UV to UL 746C (f1)

Rotator connectorFour-pin M12

Cable15 m power and control, supplied. Extensions of 15 m and 30 m

Power12 V DC from a 2 A supply, 24 W maximum. The rotator draws up to 1 A

AntennaMIMO, two by two or four by four, on multiple coax runs to the indoor router

ControllerPC/ABS. 152 x 81 x 33 mm, 0.23 kg. For indoor use

Controller radio2.4 GHz Wi-Fi, 802.11 b/g/n. WPA2-PSK and WPA2-Enterprise (PEAP). Bluetooth for pairing

ModemNone. The site's own router carries the modem and the SIM

Cellular Path's two datasheets give the maximum antenna weight as 80 lb on one model and 100 lb on the other, for what is the same rotator. We publish the lower of the two until Cellular Path confirms one figure. The controller is an indoor unit and carries no ingress rating.

Not In The Box

The directional antenna, the coax, the router and the mounting pole. SOCA supplies the aim, not the link.

Routers

SOCA-02 No Modem reads the router's own signal figures while it scans, so the router has to be one Cellular Path has verified. It publishes that list and we hold the current version, with the United Kingdom variants identified. Ask and we will send it, with the conditions attached to it.

Ask For The Verified Router List

The Unit

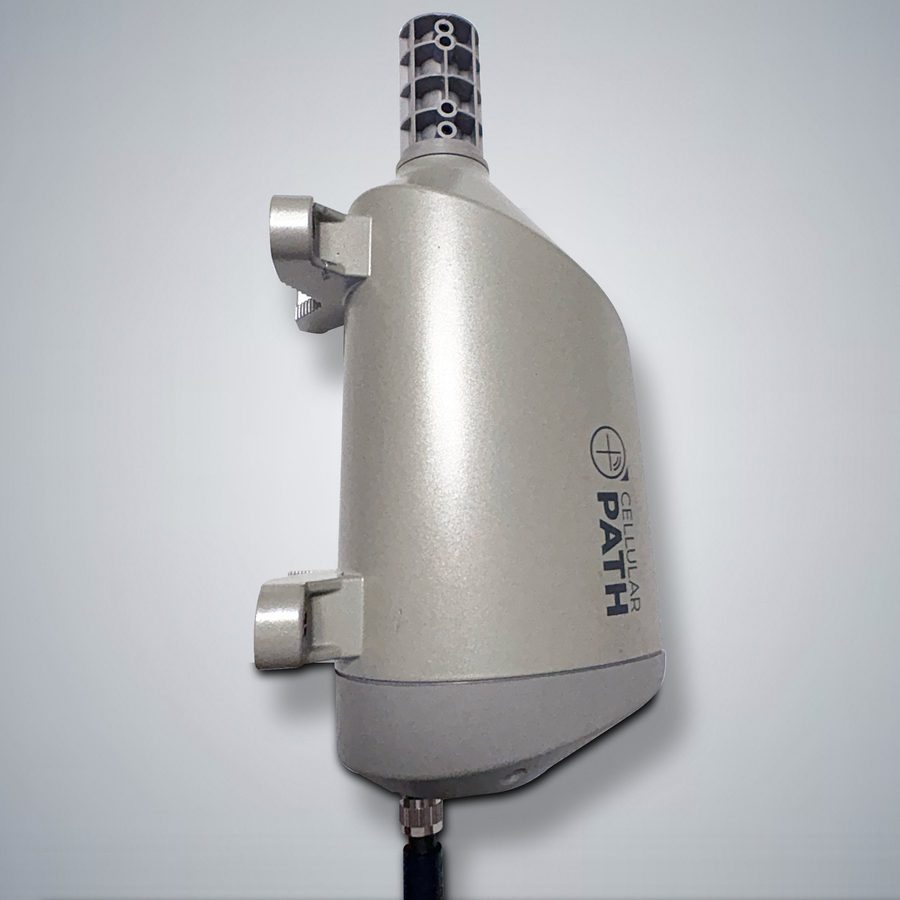

Side view of a SOCA rotator showing the two mast clamps and the cable gland at its base. — The rotator, side view. Photograph: Cellular Path.

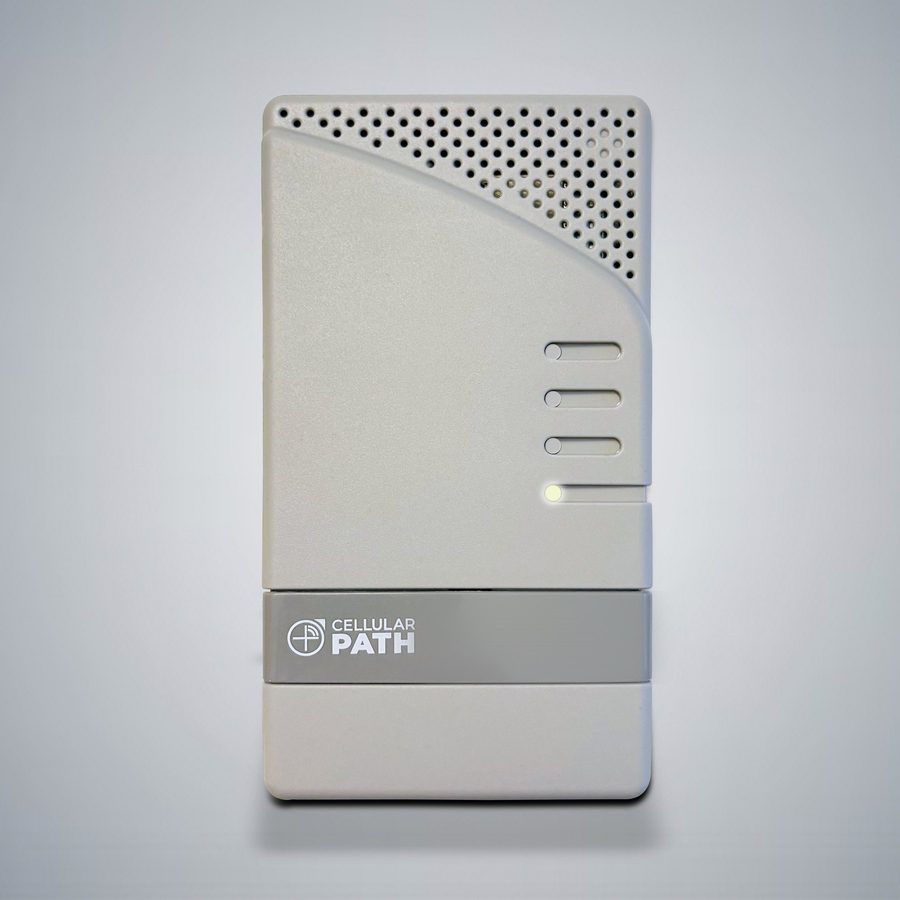

The indoor controller for the No Modem model, a plain wall unit with four status lights down one edge. — The indoor controller. Photograph: Cellular Path.

The Other Model

Where a site has no router to borrow, SOCA-01-T-4G50 Smart 4G carries its own LTE module and SIM.

Read The Smart 4G Page

Manufacturer

Distributed in the UK by Boothroyd Distribution.

Specifications and photographs are Cellular Path's own, published by it and reproduced here under our distribution agreement. The photographs were taken at sites in the United States. Cellular Path and SOCA are trade marks of Cellular Path, Inc.
